LinesWidth
LinesWidth (Get method)
Get lines width when plotting a curve using lines.
int LinesWidth()Return Value
Lines width.
LinesWidth (Set method)
Set lines width when plotting a curve using lines.
void LinesWidth(
const int width // lines width
)Parameters
- width
[in] Lines width when plotting a curve using lines.
Example:

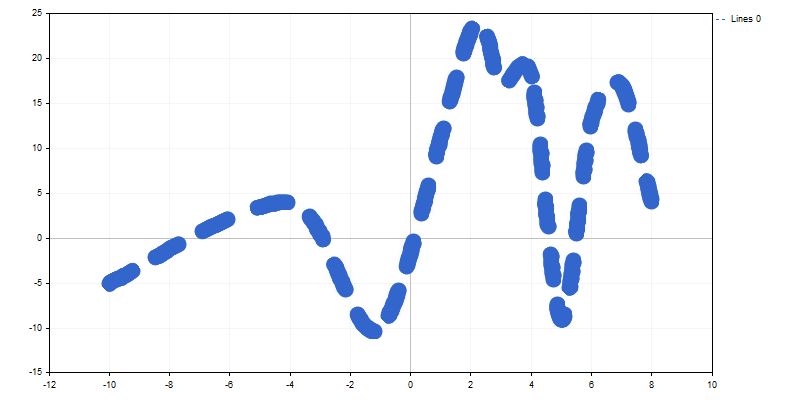

A line width has been changed using the following code:
//+------------------------------------------------------------------+
//| CandleGraphic.mq5 |
//| Copyright 2000-2024, MetaQuotes Ltd. |
//| https://www.mql5.com |
//+------------------------------------------------------------------+
#include <Graphics\Graphic.mqh>
//+------------------------------------------------------------------+
//| Script program start function |
//+------------------------------------------------------------------+
void OnStart()
{
double x[]= { -100,-40,-10,20,30,40,50,60,70,80,120 };
double y[]= { -5,4,-10,23,17,18,-9,13,17,4,9 };
//--- create graphic
CGraphic graphic;
if(!graphic.Create(0,"ThickLineGraphic",0,30,30,780,380))
{
graphic.Attach(0,"ThickLineGraphic");
}
//--- create curve
CCurve *curve=graphic.CurveAdd(x,y,CURVE_LINES);
//--- sets the curve properties
curve.LinesSmooth(true);
curve.LinesStyle(STYLE_DASH);
curve.LinesEndStyle(LINE_END_ROUND);
curve.LinesWidth(10);
//--- plot
graphic.CurvePlotAll();
graphic.Update();
}Last updated on
